Bioclimatic pergolas / B200XL
B200XL for maximum outdoor comfort
Adjustable aluminium louvers (150°) allow you to control light and airflow, while the robust construction ensures durability in all weather conditions.
150-degree louvers
freestanding or wall-mounted installation
RGB LED, heaters and speakers
150°
louver rotation
7,00 x 4,00 m
maximum single span
200 km/h
closed-system wind resistance
Model description
An elegant bioclimatic pergola designed for maximum outdoor comfort.
Adjustable aluminium louvers (150°) allow you to control light and airflow, while the robust construction ensures durability in all weather conditions.
It is available as a freestanding or wall-mounted solution, with optional upgrades for enhanced comfort.
Dimensions and details
| Item | Value |
|---|---|
| Maximum single-span size | 7.00 x 3.50 m (B200), 7.00 x 4.00 m or 6.00 x 4.50 m (B200XL) |
| Maximum double-span size | 6.00 x 6.00 m or 7.00 x 7.00 m with 2 additional support columns |
| Control | Somfy IO remote, remote control |
| Wind resistance | up to 200 km/h in the closed system |
| Louvers | 16 cm and 21 cm louver options, rotation up to 150° |
| Modules | multiple modules can be connected in length and width |
| Waterproofing | the pergola is fully waterproof |
| Safety | SAFETY STOP stops the louvers if an obstacle is detected |
| Colours | RAL 7016 ST, RAL 9016 ST, RAL 7039 ST, RAL 900 and other RAL colours on request |
Other RAL colours are available on request.
Additional options
- dimmable RGB LED lighting
- heaters
- Bluetooth speakers
- electrical sockets in the columns
- integrated shades

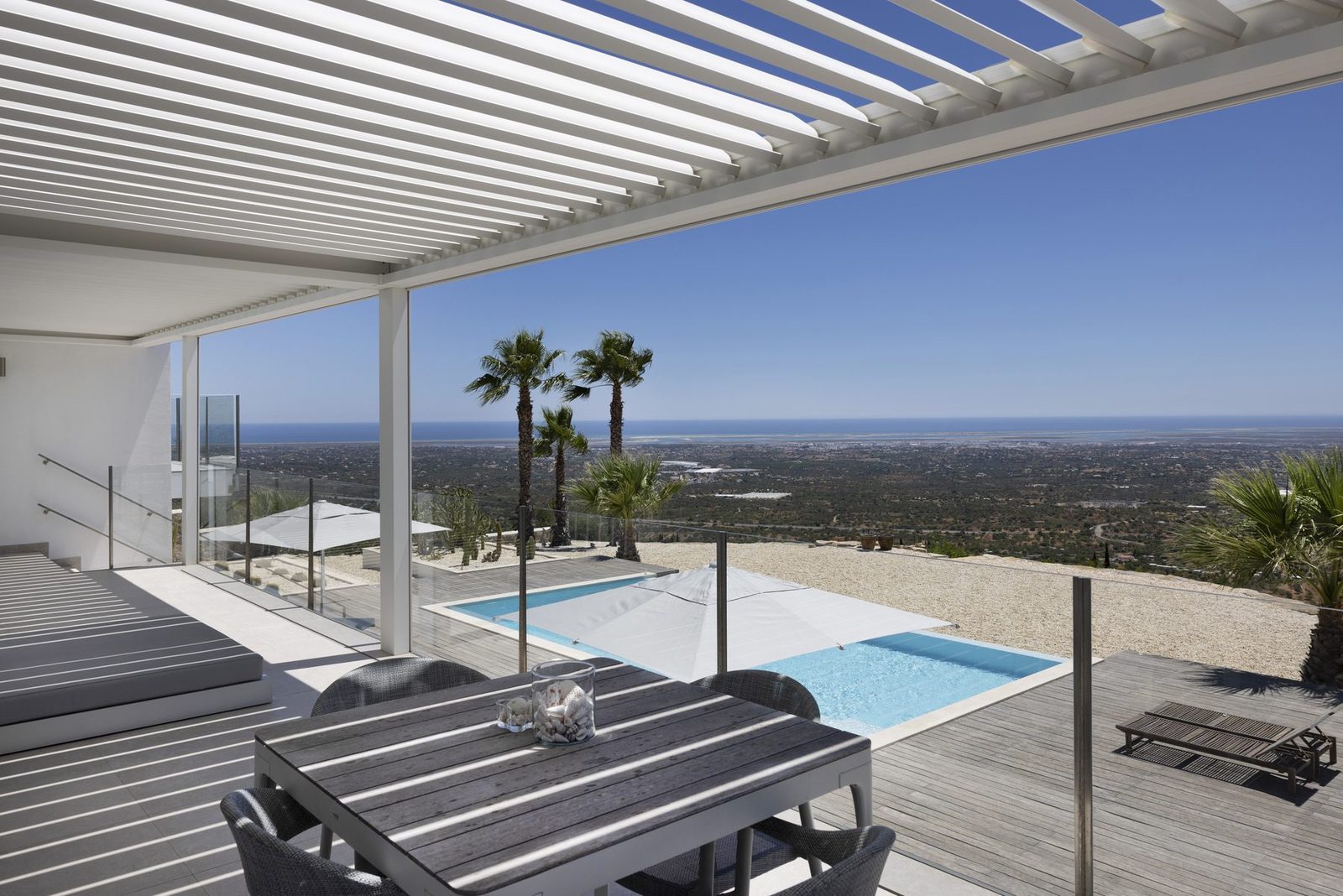

Model visuals
Images from the local library show the selected model or a related installation, construction details and how the system sits in the space.
